Description:

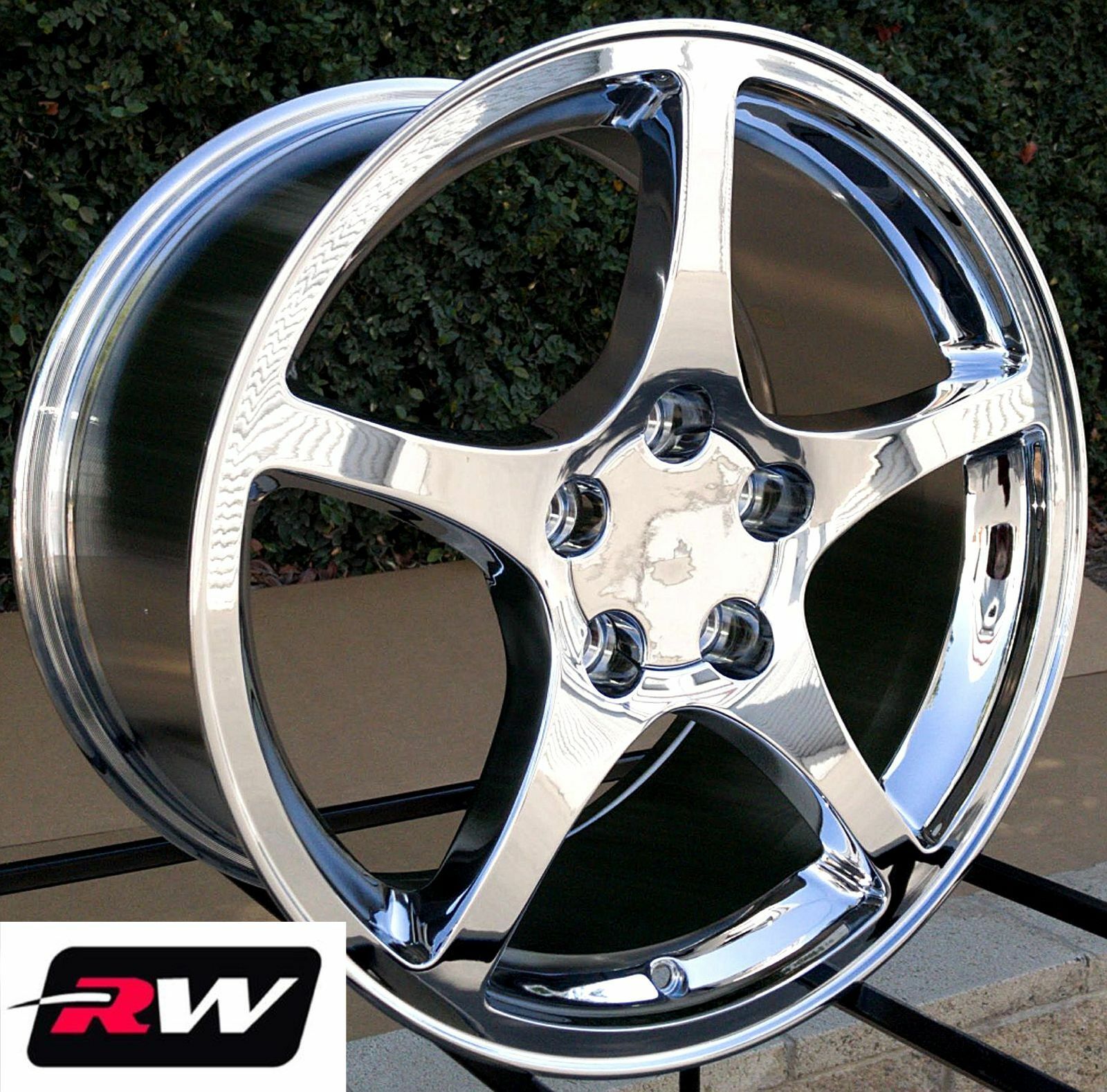

Set of Rims for Chevy Corvette C4

(2) 17x8.5" and (2) 18x9.5" Chevy Corvette

2000 C5 Y2K Corvette OE Replica Chrome wheels

Vehicle applications:

*1988-1996 Chevy Corvette C4

*All models except C4 ZR1 and C4 Grand Sport

 (Will not fit 1984-1987 Corvette C4)

*1997-2004 Chevy Corvette C5

*All models except C5 Z06

1993-2002 Chevy Camaro (fit all models)

1993-2002 Pontiac Firebird (fit all models)

Wheel specifications:

Item condition:  New, first line

Wheel brand:  RW Replicas

Part number:  904C-786154-904C-896154-C4X

Hollander #:  5102 front and  5104 rear

GM Wheel Part Numbers: 9593798 front and 9594011 rear

Wheel warranty:  2 years finish - lifetime structural

Rim material:  aluminum alloy

Rim structure:  One piece cast

Rim finish:  Chrome - Triple chrome plating (copper, nickel and chrome)

Rim diameters:  17 inch front and 18 inch rear

Rim widths: 8.5" front and 9.5" rear

Number of bolts:  5

Lug pattern:  5x4.75" (5x120.65mm)

Offsets:  +54mm front and +54mm rear

Backspacing:  6.88" front and 7.38" rear

Center bore:  70.7mm

Wheel accessories:

Center caps:  Plain center caps are included

These wheels also accept Original Corvette center cap

Part Number # 9594012 Type 3  and/or aftermarket center caps made for the 2000-2004 Corvette C5 (all models) replica wheels

Lug nuts: these rims require  closed end  M12x1.5 conical seat lug nuts - (not included) -

We also sell lug nuts. Please contact us to add lug nuts to your order or visit our eBay Store

TPMS Sensors:  These wheels accept stock and aftermarket TPMS sensors - (not included)

We also sell TPMS sensors - visit our eBay store or contact us to add TPMS sensors to your order.

Note:  You may use your stock sensors or new ones but in either case a TPMS sensor valve rebuild kit

may be required. The system will have to be reinitialized in order to work properly

(a procedure that can be done at a tire shop that has a special tool to do it or at your local vehicle dealership).

Tires:  tires are not included - we also sell tires - visit our eBay store or contact us to add tires to your order.

Note:  Check your current size tires to make sure they are compatible with the new wheels being purchased.
